Good evening and welcome back, to another installment of “What’s new in mcjs”. Later than promised, but rich in good news!

(Formally, I blame the delay on an unplanned – but not unwelcome! – job change, but let’s not kid ourselves. This is my emotional support side project, I have no intention of sticking to any sort of roadmap or schedule. Down with project management!)

Scoping rules

Screenshot from Sekiro, “Shinobi Execution” message laid over a view of the Guardian Ape, apparently defeated.

(Source: https://www.reddit.com/r/Sekiro/comments/10mghn6/guys_i_just_beat_the_guardian_ape111 )

This was called the “next dragon” in the last post, and I have very good news about it:

Group                                                                  % Passing
-------------------------------------------------------------------  -----------
test/language/block-scope/leave                                            100.0
test/language/block-scope/return-from                                      100.0
test/language/block-scope/shadowing                                        100.0
test/language/block-scope/syntax/for-in                                    100.0
test/language/block-scope/syntax/function-declarations                     100.0
test/language/block-scope/syntax/redeclaration                             100.0
test/language/block-scope/syntax/redeclaration-global                      100.0

All tests in the block-scope group pass! The dragon is slain! (Fingers crossed; things generally work as they should, but there are a few other tests that exercise scoping rules, and I didn’t pick that particular boss out of all those in Sekiro for no reason… 😉)

The most important part of the solution to this problem is a new intermediate representation named the “PAST”.

PAST: the Pre-bytecode AST

There are 4 types of declaration in JavaScript, each introduced by a different keyword: let, const, var and function.

var is considered legacy, largely due to its behavior being unintuitive in certain respects. In particular, it forces you to extend the scope of the variable to the whole enclosing function, even the part of it before the line where the declaration appears! function behaves similarly, but functions are always expected to be somewhat “special” compared to variables, which makes its behavior “better accepted” by the typical programmer.

// this works!
console.log(f(3, 5));  // 8

// `x` exists, even though it's declared later (but it's undefined)
console.log(x);        // undefined

function f(a, b) {
  return a + b;
}

var x = 5;
console.log(x);        // 5

Also, var and function declarations found at the toplevel scope of a script are automatically turned into properties of the global object (i.e. window, globalThis), so they may “escape containment” and be accessed by any other part of the program.

Nowadays, everyone is encouraged to use let and const instead, which enjoy the more obvious behavior of lexical scoping. These declarations are valid “from now on”, until the end of the enclosing block, just like in most other programming languages:

console.log(x);  // => Uncaught ReferenceError: x is not defined
{
  console.log(x);  // => Uncaught ReferenceError: Cannot access 'x' before initialization
  let x = 5;
  console.log(x);  // => 5
}

This is great, but it poses a challenge to us implementers: all 4 declaration types must be able to coexist in the same script/module, each with their behavior. Precise rules for their coexistence have been laid out, but they are, by their nature, somewhat convoluted and unintuitive. If you want an introduction, the MDN articles for function and let (focus on “Description”) are pretty good and will save you a bunch of midnight oil, otherwise burnt studying the ECMAScript standard.

My hair has already started thinning, so in the interest of not making a bad situation worse, I realized I had to pick an approach that makes these ‘interactions’ manageable.

My choice turned out to be successful. I “broke down” the behavior of the 4 declaration types into “elements” that can then be processed separately and independently by the bytecode compiler. In broad strokes, each declaration is now described in terms of:

  • what happens when there is a "use strict" directive (and when there isn’t);

  • what is their “visibility scope” (e.g. enclosing function, enclosing block);

  • under which conditions redeclarations are allowed;

  • what happens if the declaration is at the script or module’s toplevel.

Once the declaration is understood in this form, the bytecode compiler to make sure that the visibility scope is actually honored during name resolution (i.e. ‘widened’ whenever necessary), and that any forbidden redeclarations are caught and prevented. I’m convinced that this basically requires the program to store the declarations in this broken-down form. This is the chief reason that a new intermediate representation needed to be introduced in the bytecode compiler.

This new IR, named “PAST” (for Pre-bytecode AST, it’s temporary, I know it sucks, don’t @ me) sits between the AST (a direct representation of the JS source code) and the bytecode (directly executable by the interpreter).

I don’t like to keep things too abstract for too long, so let’s start by looking at an example of a typical PAST fragment (I know, this textual representation makes me want to gouge my eyes out, too… consider it programmer art):

PAST: [814-980] func () unbound[$print, sayHello, people] Sloppy block0 {
  decls:
    Decl: tmp2 = TDZ [conflicting]
  fn asmts:
    sayHello <- e0
  exprs:
    e0: CreateClosure:
      [814-871] func (whom) unbound[$print] Sloppy block1 {
        decls:
        fn asmts:
        exprs:
          e0: Read($print)
          e1: StringLiteral(Atom('Hello, ' type=inline))
          e2: Read(whom)
          e3: Binary("+", e1, e2)
          e4: Call { callee: e0, args: [e3] }
        stmts:
          [844-869] Assign(None, e4)
      }
    e1: Read(tmp2)
    e2: StringLiteral(Atom('Alice' type=inline))
    e3: StringLiteral(Atom('Bob' type=inline))
    e4: StringLiteral(Atom('Charles' type=inline))
  stmts:
    [886-913] Assign(Some(tmp2), eArrayCreate)
    [886-913] ArrayPush(tmp2, e2)
    [886-913] ArrayPush(tmp2, e3)
    [886-913] ArrayPush(tmp2, e4)
    [873-913] Assign(Some(people), e1)
    block3 {
      decls:
        Decl: i = TDZ [conflicting]
      fn asmts:
      exprs:
        e0: NumberLiteral(0.0)
      stmts:
        [914-980] Assign(Some(i), e0)
        block4 {
          decls:
          fn asmts:
          exprs:
            e0: Read(i)
            e1: Read(people)
            e2: StringLiteral(Atom('length' type=static))
            e3: ObjectGet { obj: e1, key: e2 }
            e4: Binary("<", e0, e3)
            e5: NumberLiteral(1.0)
            e6: Binary("+", e0, e5)
          stmts:
            [914-980] IfNot { test: e4 }
            [914-980] Break(block3)
            block5 {
              decls:
              fn asmts:
              exprs:
              stmts:
                block6 {
                  decls:
                  fn asmts:
                  exprs:
                    e0: Read(sayHello)
                    e1: Read(people)
                    e2: Read(i)
                    e3: ObjectGet { obj: e1, key: e2 }
                    e4: Call { callee: e0, args: [e3] }
                  stmts:
                    [958-978] Assign(None, e4)
                }
            }
            [947-950] Assign(Some(i), e6)
            [914-980] Assign(None, e6)
            [914-980] Unshare(i)
            [914-980] Jump(StmtID(0, block4))
        }
    }
}

It’s the result of the compilation of this piece of really dumb code:

function sayHello(whom) {
    $print("Hello, " + whom);
}

var people = ['Alice', 'Bob', 'Charles']
for (let i=0; i < people.length; ++i) {
    sayHello(people[i]);
}

It has the following characteristics:

  • It distinguishes between statements, expressions, and declarations.

    • New variable names can only be introduced explicitly by declarations.

    • Expressions are “inert”: they represent the syntax of an expression but do not imply its evaluation.

    • Statements are the only thing that “happens” in the block. They can refer to expressions; when they do, executing the statement includes evaluating those expressions. Each distinct reference to the same expression imples a distinct evaluation.

  • Statements, expressions, and declarations are grouped into self-contained blocks, which also track the set of unresolved names.

    • A block is formed by 4 distinct sections, which should be conceptually understood in this order: variable declarations; function declarations; expressions; statements. (Function declarations are separate because it happens to make it easier to implement the semantics of function declarations; consider it an implementation detail.)

  • No name resolution. Variables are always designated by their original name, exactly as in the source JavaScript code. Names remain unresolved throughout the whole PAST generation phase. Anonymous variables (in a separate namespace) can be introduced to represent temporary values (typically to reuse the result of an expression evaluation).

  • A block can be inserted into another block as a statement.

    • This is an important basic operation in the PAST generation algorithm. As a part of it, declarations from the inner block are “merged” into the outer block following an algorithm that honors JavaScript’s rules. Afterwards, any redeclarations appearing as a result are checked for correctness.

While we’re here, I should explain why it’s important that the redeclaration check happens at every block merge. The JavaScript standard wants us to check that certain declarations (let, const; let’s call them “exclusive declarations”) do not conflict with any other declaration that is visible in the same scope. A conflict is when multiple declarations try to define the same name. There are a number of factors that make this uncannily hard:

  • var and function are automatically hoisted (that’s a technical term for ‘moved upwards’) to the beginning of the function scope.

  • potentially conflicting exclusive and hoisted declarations may be discovered by the compiler in any order.

  • var and function are not exclusive; they admit redeclaration (almost) freely.

I tried several approaches, and I kept getting a bunch of cases wrong every time, until I discovered the current algorithm, where var and function declarations bubble up the chain of blocks (sit down, Satoshi) and redeclarations are checked at every step. This way:

  • var and function get hoisted, but there are multiple chances to check for conflicts before they reach their “destination” at the top of the function scope.

  • All discovery orders are served correctly: exclusive declarations are checked immediately against previously discovered declarations; hoisted declarations always encounter their conflicting exclusive declarations at some point on their way to their destination.

  • After “surviving” all necessary rounds of redeclarations checking, conflicting var and function declarations are deduplicated so as to result in a single name definition, as per JavaScript specs.

Neat.

What did we gain by all this? Well, once all this work is done, the semantics of variable declaration and reference in the resulting PAST are extremely simple: variables must be declared with their name prior to usage; declarations are only valid in their block (and children, of course).

Because variables remain referred to by name in this representation, we can delay the allocation of virtual VM registers and the name resolution phase entirely after the PAST is fully generated. And because of the PAST’s simple semantics, these two tasks are very simple. Yay!

Stackless interpreter design

For a pretty good chunk of the last few months, I thought I had done a good thing when I changed the interpreter’s design to a stackful one. I have since seen the error of my ways, and have come back to a good and right stackless design.

Now, I’m going to explain what I mean by those words, which I hope aligns well with how they are broadly understood in the field. I haven’t cared much for using them precisely until this very moment, right here at my desk while I type this blog post, so feel free to correct me. I’ll be glad to fix my understanding and this post, too.

As you know, when your JavaScript program runs and calls functions, there is a call stack that keeps track of which calls have been started and are yet to finish. It tracks where the execution will have to return to, and the value of each local variable. The interpreter itself, like any other Rust program, is also made out of functions that are called and return, and as such it also has its own stack. We’ll call these the JS stack and the native stack respectively.

In a stackful interpreter, each JS stack frame corresponds to exactly 1 native stack frame. In other words, in order to call (and run) a JS function, the interpreter makes a call to an internal function of its own. For as long as mcjs was stackful, mcjs’ version of this function was called run_frame. When it’s time for the JS function to return, run_frame also returns.

In a stackless interpreter, the two stacks are fully independent. In order to perform a JS call, a typical stackless interpreter will apply some changes to some internal data structure that represents the JS stack. When the interpreter’s main loop continues, it will unknowingly find itself working with another JS stack frame, maybe another JS function entirely, and another set of local variables, simply as a consequence of stack.top_frame() (or whatever) returning a pointer to a different stack frame.

I had originally switched to the stackful design because I thought I could:

  • Make it clearer which variables are borrowed for the full duration of a stack frame, and which need to be dropped and fetched again from the interpreter’s state structure (the Rust→C translation of this is that it would make it less likely to accidentally keep a pointer to the wrong stack frame around);

  • Make it simpler to have temporary data that only exists for the duration of a stack frame, without making additions to the JS stack frame itself.

  • Make it simpler to implement suspend/resume of the whole interpreter (which is fundamental for the debugger);

  • Make it simpler to implement exception handling.

    • Stack unwinding maps quite neatly to the interpreter’s stack: an exception simply becomes a particular type of return value. Then the caller frame can check whether or not it has a handler for it, and decide to jump to it or return the exception again further. If the exception is unhandled, the exception bubbles up all the way to a wrapper function that transforms it into an error message and that’s it.

These points are not necessarily that stupid, and they would even be decent if it wasn’t so easy to maintain all these advantages with a stackless design, and if the stackful design didn’t make so many things harder.

Among these harder things is maintaining the state of the JS stack between a suspend and the following resume. This is necessary for the debugger to be of any use (think about it this way: the debugger is a GUI editor of the interpreter’s state; it’s useless if the interpreter state must be reset to “zero” before the GUI can even be shown). In Rust terms, this use case can be stated as “both the interpreter and the debugger want a &mut to the interpreter’s data”. As a consequence, the interpreter must relinquish its &mut access to the debugger, and it will later get it back to resume execution.

Now, if you’re the interpreter and you’re asked to resume execution, you’re going to be given a JavaScript stack of a number of frames. As we said, each of these has to correspond 1:1 with a recursive call to run_frame. As far as I can tell, all you can do is what I call “stack climbing”. In short, run_frame is designed so that (only when resuming!) it starts by calling itself again for the stack frame directly above until the 1:1 correspondence is re-established. Then, as the top frame returns, each of the lower run_frame instances resume execution normally. Workable but… bleh.

As I charted the way to certain features (primarily generators), I started eyeing a stackless design again. After thinking about it and doing some practical experiments, it turns out that with a stackless design:

  • It’s still clear what is borrowed when.

    • The interpreter’s main loop now has two nested labeled loop {} statement that make it easy to do the “drop & fetch again” move I mentioned above. Just continue 'reborrow. (Terrible name, I know. I’m sure you’re starting to see the pattern.)

  • It’s true that it’s hard to have temporary data outside of the interpreter’s stack data structure, but it turns out that it’s not very useful, nor a particularly good idea. Much better to do things properly and put things where they belong.

  • Suspending and resuming the interpreter is not harder.

    • The hard part is actually making sure that the interpreter is left in a “resumable” state after suspending, and that execution starts from the correct instruction upon resuming. Being stackful doesn’t really help here.

    • Guaranteeing that execution continues properly requires doing nothing. The stack is still there!

  • Exception handling is still OK.

    • Upon throwing an exception, the handler to be used is searched in the stack. When it’s found, an appropriate number of stack frames are popped, the instruction pointer is made to point to the handler and execution resumes regularly. That’s it.

  • It opens up a cool strategy for implementing generators. See the details in the next paragraph.

Overall, I’m happier with things this way.

On this topic, some really good points were made in this excellent blog post, which I can recommend wholeheartedly: Piccolo - A Stackless Lua Interpreter.

Generators & Iterator Protocol

This is actually a fairly recent development, which I only undertook because I wanted to increase the fraction of JSON5 that runs under mcjs.

If you want to learn what a generator is, see this MDN article. It’s this type of thing:

function* gimmeSomeNumbers() {
    let i = 0;
    yield ++i;
    yield ++i;
}

JavaScript’s generators are, in PLT parlance, asymmetric stackless coroutines.

  • asymmetric because they can only yield to their caller;
  • stackless because they can’t implicitly yield to their caller by calling another coroutine (in other words a yield statement can only affect the current call/stack frame);
  • coroutines because they are functions that can suspend themselves and be resumed.

I realized that one useful way of thinking of them is as a mechanism for saving and restoring a single stack frame. Thanks to their being stackless, there is never any need to ever look at any other part of the stack.

Here, too, I found myself choosing among multiple implementation approaches:

  1. “Compiler trick”. Basically consists in transforming the generator into a regular function that uses a state machine to “jump back where it left”. This is the approach used by Facebook’s regenerator and by Babel.js (in order to make generators available to pre-ES6 interpreters).

  2. The literal way. One can add a dedicated bytecode instruction that causes the interpreter to literally save the stack frame (in an appropriate form) and restore it later.

Approach #1 is very popular, and it has a very significant advantage: once you perform this transformation (fully contained within bytecode compilation), you’re done: everything works exactly as for regular functions. The VM does not have to know anything about generators at all. The disadvantage is that I found the transformation to not be quite so simple; for example, local variables have to be turned into properties of a dedicated object (or their state won’t be persisted across a yield).

I might be wrong, but I’m very satisfied with having followed approach #2. Stack frames have a very simple representation at runtime, and inventing an alternative form from which it can be restored wasn’t hard.

(Calling it now: I suspect I’m going to eat my hat once I start implementing a GC seriously. That’s how I conduct my life: I bet against myself, so I always win somewhere.)

Here’s a subtle point that wasn’t obvious to me prior to implementing generators: the coroutines that power generators are invisible in JavaScript code. You can’t give them a name, and there is no syntax for them. You can only have generator functions (that’s what gimmeSomeNumbers is). When called, they return an object whose next property starts or advancesf the internal coroutine until it yields, and returns the yielded value.

That’s literally what mcjs’s bytecode compiler does: it transforms generator functions into functions that return an object with a next yadda, yadda, yadda, and this has a cool property: the returned object implicitly adheres to the iterator protocol, which is going to be the basis of the for(… of …) syntax. Neat! That’s going to be next.

Debugger

The debugger has seen significant additions. See for yourself:

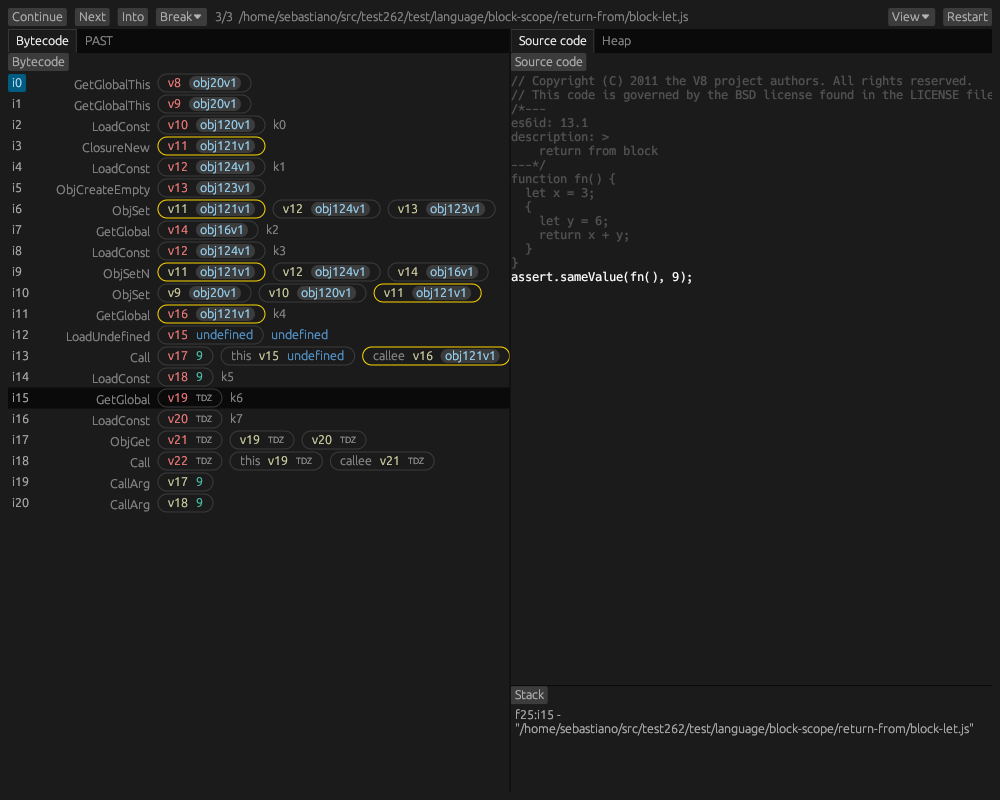

Screenshot of the mcjs debugger, mcjs_tools. Shows some instructions on the left, and some source code on the right.

Some notable features:

  • When you hover a value (e.g. instruction argument), other references to the same object or VM register are also highlighted. This makes it easy to understand which instruction last assigned the value and/or where the same register or object is going to be accessed.

  • The UI layout is fully customizable, Visual Studio style. Quite easy to implement, all thanks to the fantastic egui_tiles! The layout can also be saved/restored in case it benefits a particular debugging “campaign”.

  • Thanks to the changes to the interpreter’s API that came along with the switch to the stackless design, there is no longer any need for Pin or unsafe code, which really makes me feel much more at ease when developing new features.

  • When stepping through instructions, you can decide to follow the interpreter into calls (“Into”) or wait until the call returns (“Next”).

  • The interpreter can break on ony throw instruction, and/or only on those that result in an unhandled exception.

  • Unhandled exceptions are easier to work with:

    • the full stack trace is printed, with filenames and line numbers;
    • dedicated commands allow to sat a breakpoint at the throwing instruction, and/or enable “break on throw”.

Future

The level of test262 coverage seems to be pretty alright right now. I’ll take a look at the currently failing tests for smaller features that are worth it to work on (some arithmetic and logic operators are still unimplemented), but I don’t expect to see any big one.

That means it’s time to put on the big boy pants and resume work on the JIT, the one actual compiler that mcjs is going to have. I can’t wait!

Also, it turns out that I can’t keep a regular pace in writing these posts, so no more promises now. You two are getting this post whenever I feel like it.

Okay, maybe one promise: I’m going to update the “line go up” (“Are we ECMAScript yet?”) page soon. I just haven’t got round to do it, unfortunately. Bye!

Update: “Line go up” is back online. Admire it here in all of its green glory.
